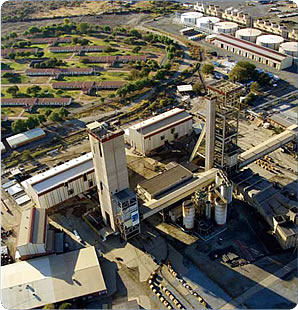

Northam mine – a shifting production profile

The Northam mine’s production at 9 113kg (292 989oz) was 9.7% lower year on year. Twenty-six production days were lost owing to safety-related stoppages, while intermittent power supply constraints also contributed to lower output.

Northam mine – key statistics

Ownership	Wholly-owned by Northam Platinum Limited
Location	Northern part of the western limb of the Bushveld Complex in Limpopo Province; adjacent to the Anglo Platinum’s Amandelbult operation
Access and infrastructure	Well-established infrastructure: tarred roads, railway, water and power
Project extent	7 625 hectares; strike length of 8km
Reserves	9.2Moz*
Resources	30.1Moz*
Life of mine	18 years
Operations	Underground mining operations on the Merensky and UG2 reefs
	Underground equipment driven by hydropower.
	Surface operations include a Merensky and UG2 concentrator plant, a smelter and base metals removal plant (BMR).
Production profile	Steady state output of approx 300 000oz (3PGM+Au) annually
Precious metals refining	Performed by Heraeus in terms of toll-treating agreement
Marketing	In-house, independent marketing to established global customer base
F2008 capex	R265 million
F2009 capex (estimate)	R340 million
F2008 cash costs	R175 197/kg (3PGE+Au)

* 3PGE + Au

The traditional difficulties associated with mining the Merensky pothole facies at Northam persisted in the year, exacerbating the already lower output levels. Year on year, tonnages milled from the Merensky reef horizon were 21.0% lower at 1 059 624 tonnes (F2007: 1 341 057).

A better performance was recorded from the UG2 reef. Tonnages milled from this reef increased by 3.8% to 963 033 (F2007: 928 149), which helped to stem the decline in total tonnages milled, of 2 022 657 tonnes, to 10.9%.

In an effort to ameliorate the lower underground tonnages, a total of 339 584 tonnes (at a grade of 0.85g/t) of waste rock fines were retreated, yielding 202kg of metal in concentrate, supplemented by 135kg emanating from retreatment of slag. Slight fluctuations in the head grades from both reefs, and the higher proportion of UG2 tonnages milled, resulted in a marginally lower combined head grade of 5.02g/t from 5.07g/t in F2007.

MERENSKY REEF

	F2008	F2007
Development metres	9 615	11 555
Square metres mined	205 251	249 812
Tonnes milled	1 059 624	1 341 057
Head grade (g/t 3PGE+Au)	5.6	5.6
PGMs in concentrate produced (kg)	5 051	6 362
Ore reserve availability (months)	18	15

UG2 REEF

	F2008	F2007
Development metres	3 117	3 267
Square metres mined	158 294	146 698
Tonnes milled	963 033	928 149
Head grade (g/t 3PGE+Au)	4.4	4.4
PGMs in concentrate produced (kg)	3 285	3 327
Ore reserve availability (months)	21	24

COMBINED REEFS

	F2008	F2007
Development metres	12 732	14 822
Square metres mined	363 545	396 510
Tonnes milled	2 022 657	2 269 206
Head grade (g/t 3PGE+Au)	5.0	5.1
PGMs in conc, produced from u/g mining (kg)	8 336	9 689
PGMs in conc. from other sources (kg)	777	398
Total (kg)	9 113	10 087
PGMs in conc. purchased	-	404

Optimising the ore reserve

Exploration drilling has confirmed that the transiton zone to the east has effectively sterilized that area, resulting in the suspension of development and stoping activities on the Merensky reef. This represents a loss of some 1.72Moz to the total resource in the lease area.

This potential loss has been countered by the progress of the deepening project, on 18 level which, with each additional level adds 2.5 years (or 0.76Moz) to the life of mine (LOM) estimate. Development is currently in progress on the conveyor decline between 15 and 16 levels, intended ultimately to extend down to 18 level.

The shallowing project on the western side of the mine is also progressing well. The first cross-cut to reef on the new No 1 level has holed, while the ore passes from No 1 to 2 levels are due for completion in calendar 2009.

Some residual problems on the 20 line fissure have persisted, affecting the development progress on 6 and 7 levels, which are now expected to be completed within five and 12 months respectively. All other levels have successfully traversed this feature and ore reserve development to the west of the fissure continues satisfactorily.

METAL SALES

	F2008		F2007
	kg	oz	kg	oz
Platinum	5 275	169 612	6 609	212 484
Palladium	2 523	81 103	3 014	96 888
Rhodium	643	20 666	877	28 180
Gold	145	4 678	203	6 549
Total (3PGE+Au)	8 586	276 059	10 703	344 101
Ruthenium	1 059	34 035	1 046	33 633
Iridium	208	6 700	270	8 687
Osmium	4	116	26	849
Silver	184	5 909	261	8 375
Total	10 041	322 819	12 306	395 645
Copper (tonnes)	573		733
Nickel (tonnes)	1 110		1 301

Ongoing metallurgical improvements

Continued improvements to the Northam metallurgical infrastructure have been a feature of the past year, driven primarily by the changing production profile, with UG reef growing into an increasingly important source of tonnages.

Having proved the success in reducing chrome levels in smelter feed, a second external sparger column cell has now been installed in the UG2 concentrator plant. With this technology, the ratio of Merensky:UG2 smelter feed has improved from 1.4:1 in F2007 to 1.1:1 in the current year while maintaining chrome levels in smelter feed to below the 1.6% limit.

Shortly after the end of the financial year in July 2008 a new high pressure roll crusher was installed at the UG2 plant. The new installation has already shown encouraging results by improving throughput and reducing power consumption. A further improvement to the processing facilities has been the conversion of the secondary rod mill to a ball mill, ensuring a better grind. Overall, these upgrades should improve recoveries by some 3%, with a positive effect also on operating costs.

As part of the metallurgical upgrade programme, the smelter will be shut down for a two-month period in October and November 2008, allowing for a scheduled rebuild, at a capital cost of some R50 million. At the same time, with the cooling of the furnace, the matte tap holes will be replaced and repairs to the converter precipitators, originally planned for January 2009, will be effected.

Capital expenditure

Total capital expenditure for the year amounted to R265 million. Major capital items were the deepening project (R69 million) and improvements to the metallurgical facilities (R33 million). The balance comprised routine capital expenditure items.

In the year ahead the deepening project is anticipated to gain momentum, with an allocation of R106 million. The cost of the smelter rebuild represents the major part of the metallurgical capital spend of R66 million in the new financial year, with total capital expenditure anticipated at R340 million.

Offtake agreement with Pilanesberg Platinum Mines

A significant development during the year was the conclusion of a metal offtake agreement with Pilanesberg Platinum Mines (Pty) Limited (Pilanesberg) in May 2008. Pilanesberg, an emerging producer in the Platmin stable, is planned to come into production in calendar 2009, and at full production is expected to add some 250,000oz (3PGE+Au), to Northam’s sales volumes.

With this agreement Northam has now gained access to a source of feed to the smelter which complements the Northam mine’s blend of ore, which will provide further flexibility to the Northam mining operations.

Significantly this development also signals the first step in our strategy of leveraging the existing metallurgical infrastructure and capacity at the Northam mine, and lowers the barriers to entry of smaller producers by providing competitive access to an independent refining and beneficiation channel.

Importantly, in the event of electricity shortfalls to the smelter in the future, Pilanesberg has agreed to bring in alternative power supply.
